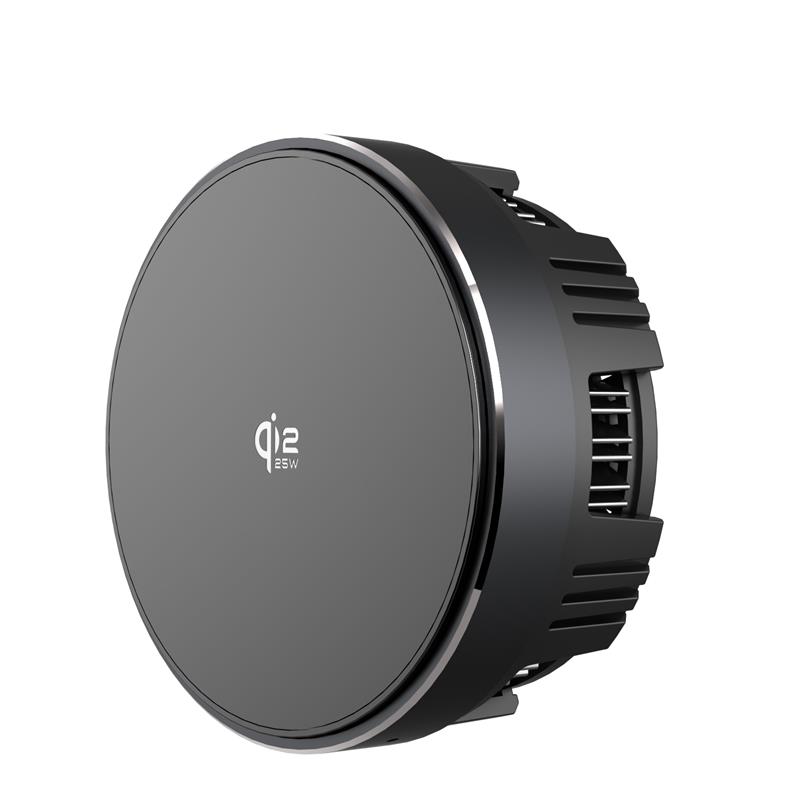

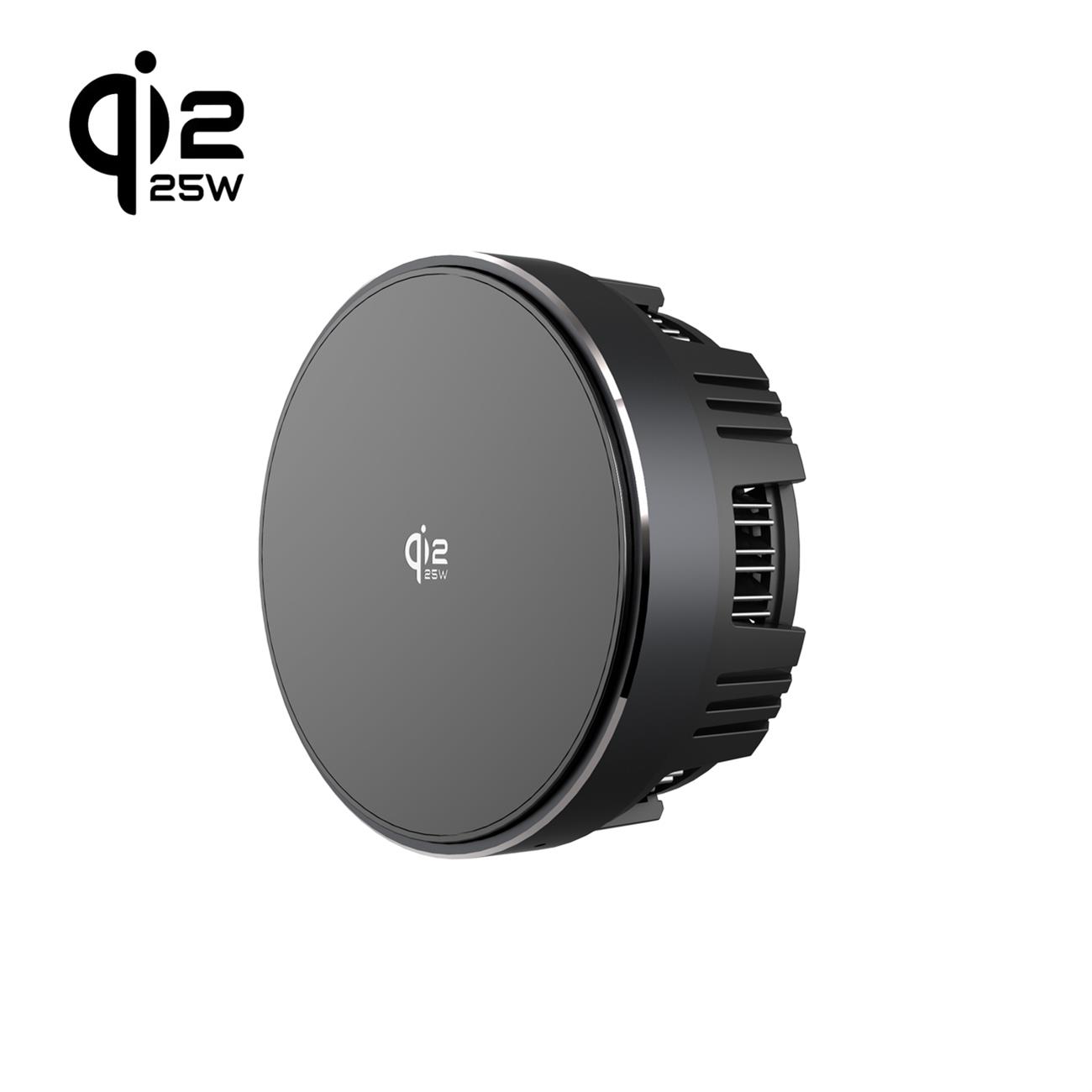

Qi2.2 Semiconductor Cooling Magnetic Wireless Charger
Product Description
Model: EC810F2
Qi2.2 25W Wireless charging
Semiconductor refrigeration + fan cooling
Strong magnetic suction
Foldable stand
Model: EC810F2
Qi2.2 25W Wireless charging
Semiconductor refrigeration + fan cooling
Strong magnetic suction
Foldable stand
| Technical Parameter | ||||
|---|---|---|---|---|
| Item | Description | Parameter | Remark | |
| 1 | Technical Standard | WPC/Qi | Qi2.2 | |
| 2 | Coil quantities | 1 Coil | WPC A11 Coil | |
| 3 | Power Supply | 15V-3A | ||
| 4 | Wireless Output | 25W/15W/10W/7.5W/5W wireless charging for mobiles | Max 15W for Magnetic iPhone and Qi standard | |
| 5 | Wireless charging range of application | QI standard receiving devices | ||
| 6 | Charging Type | Electro-magnetic induction | ||
| 7 | Charging Style | one to one in active area | ||
| 8 | Wireless charging active area | 25*25mm for mobile | ||
| 9 | Charging distance | 3-6mm | Distances is between RX coil and TX coil | |
| 10 | working frequency: | 110KHZ - 205KHZ， 127KHZ or 360KHZ for iphone | ||
| 11 | Standby indicator | Blue led Indicator off | ||
| Charging for mobile only | Blue led I Indicator always on | |||
| Charging protected for mobile only | Blue led Indicator flash fast | |||
| Mobile charged full | phone Indicator always on | |||
| 12 | Conversion Rate for wireless charging | up to 80% | ||
| 13 | over voltage protection | 10.2±0.2V | ||
| 14 | over load protection | 30W | ||
| 15 | FOD function | support | ||
| 16 | Cooling Fan | Build-in DC5V/5500RPM/Φ37.5mm Fan | ||
| 17 | Semiconductor refrigeration Chip | Build-in 3.0Ω/5W Max/23mm*23mm*4.0mm Cooling Chip | ||
| 18 | Operating temperature and humidity | –10℃ ～ 45℃ | ||
| 19 | Storage temperature and humidity | –20℃ ～ 70℃ | ||
| 20 | Product Size | Φ60x30 mm | Φ60x45.6 mm(with holder gland) | |
| 21 | Net Weight | 90g | ||
| 22 | Accessories | User Manual、USB-C Cable | ||

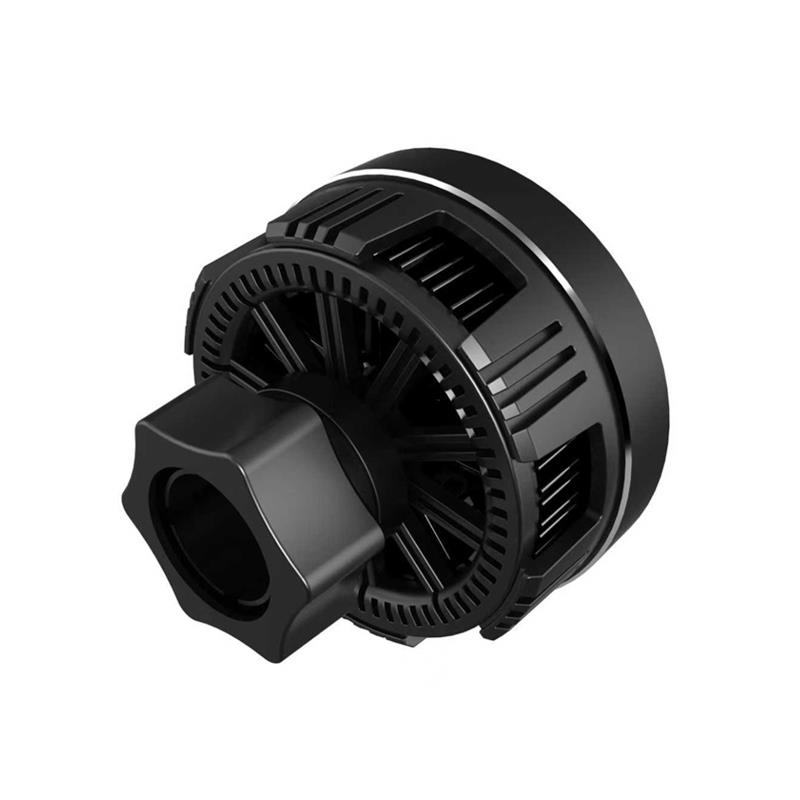

Semiconductor refrigeration panel - instant freezing - extra cooling fan - no more heat worry

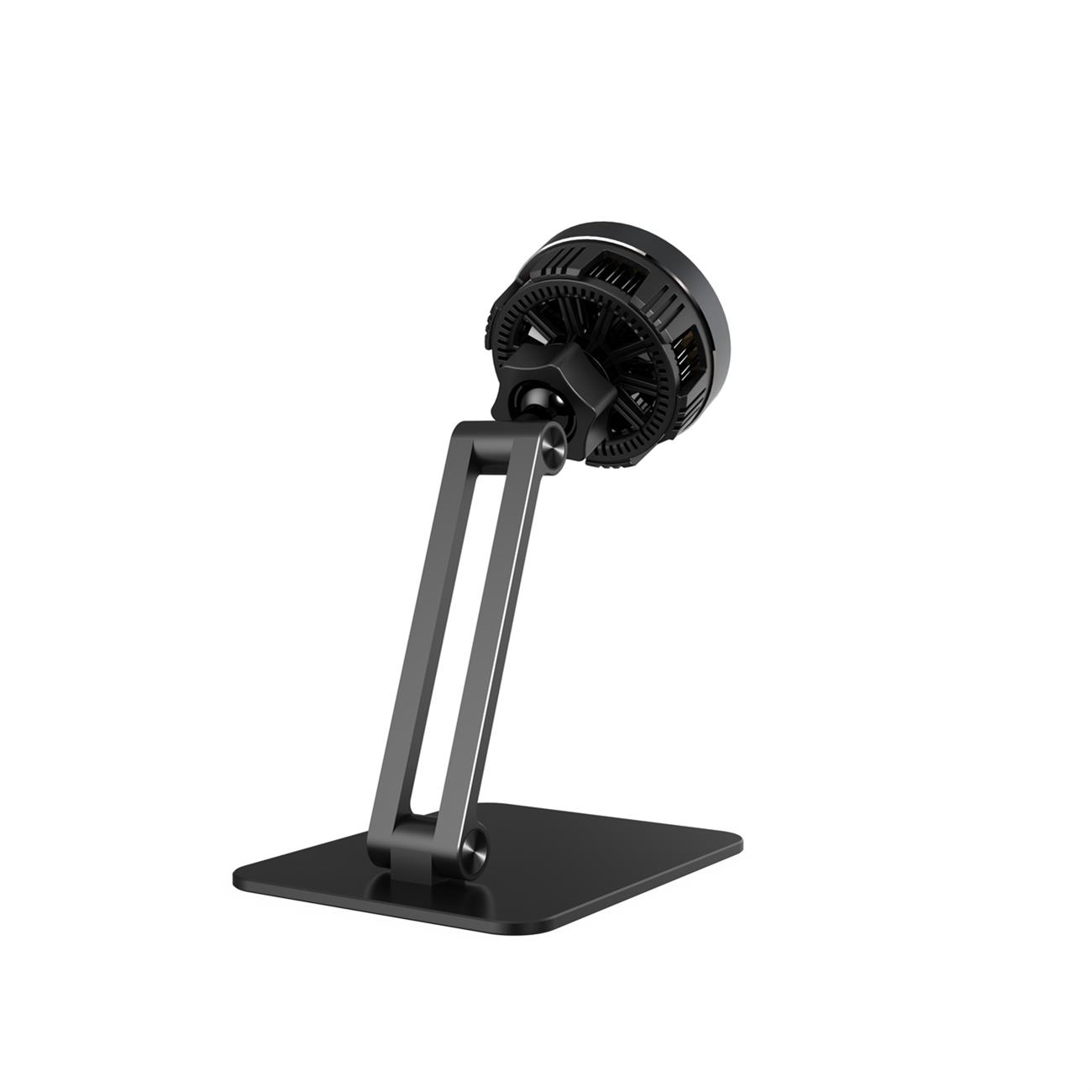

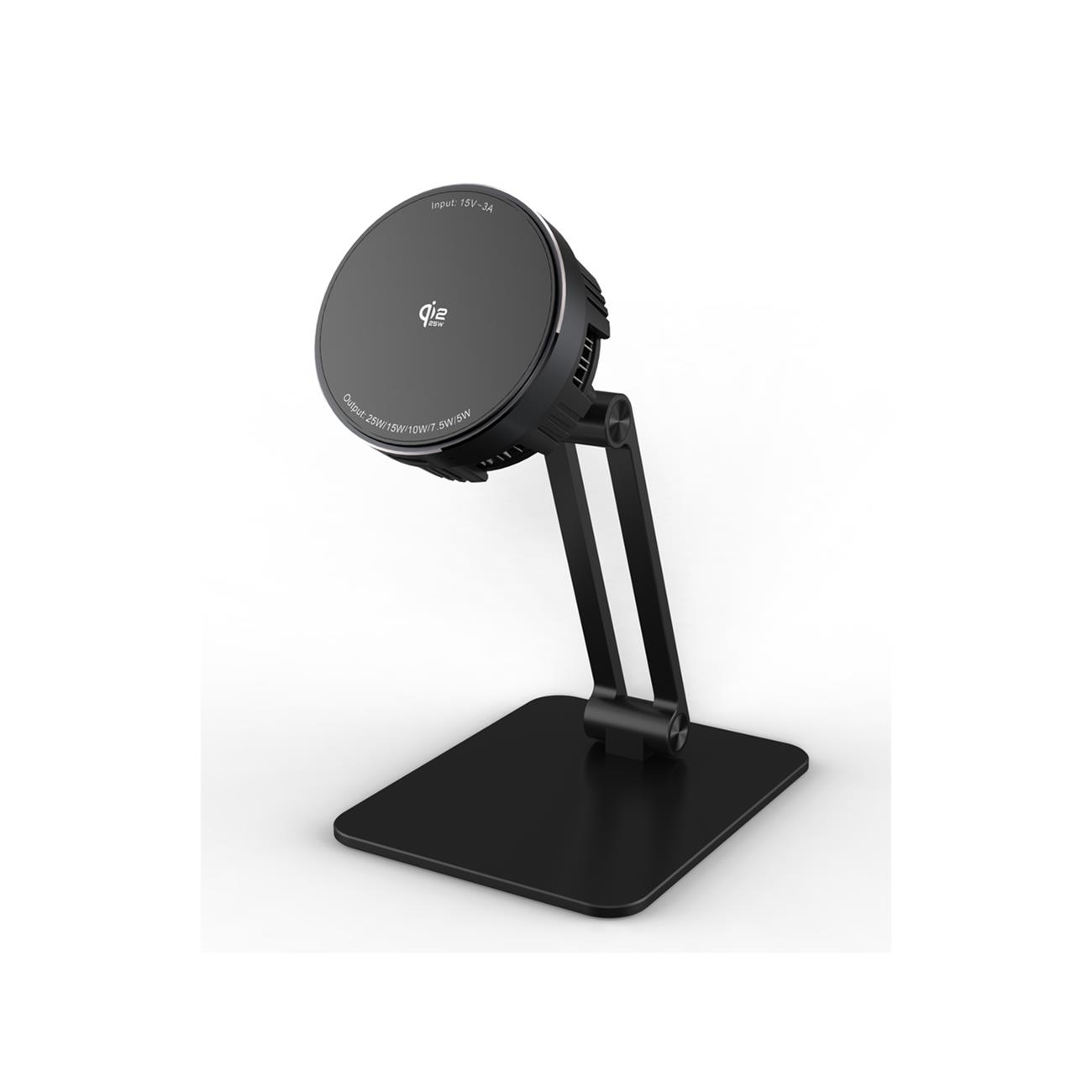

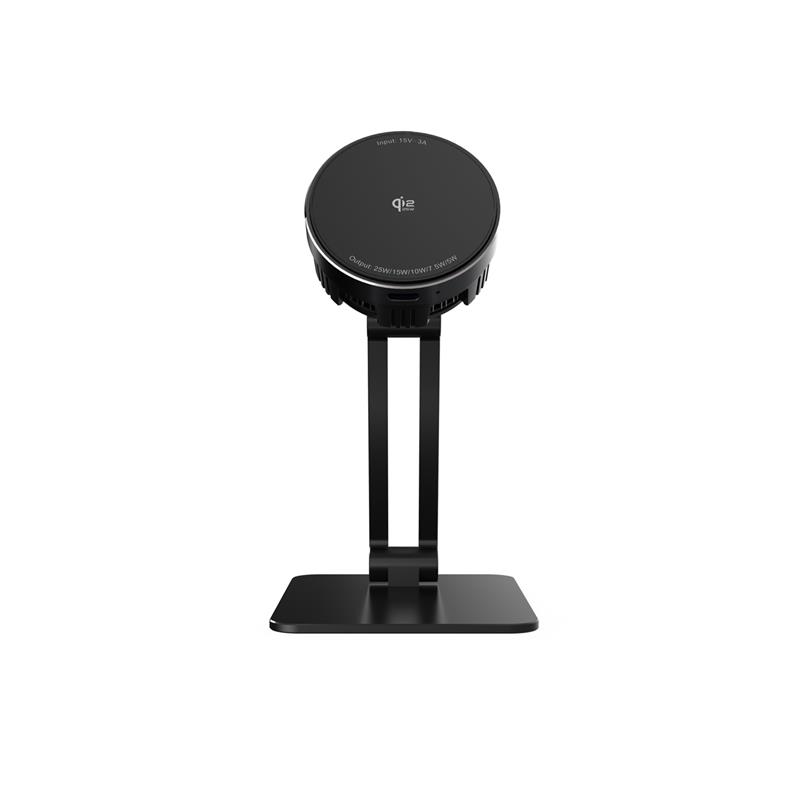

Foldable Stand
